IEEE 1451.3

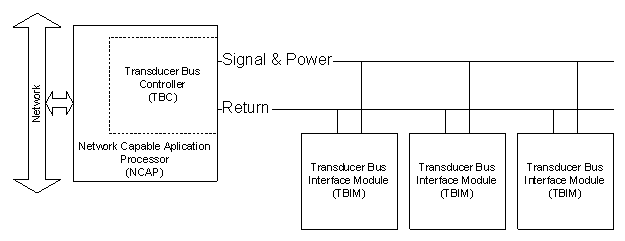

Physical representation of the IEEE 1451.3

On the left Network with a double arrow pointing to a rectangle labeled Network Capable Application Processor (NCAP)

Inside the Rectangle is a box labeled Transducer Bus Controller (TBC)

2 lines come out of the right side 1 labeled Signal and Power, the other labeled Return

3 lines extend down from the line and connect to 3 boxes labeled Transducer Bus Interface Module (TBIM)

Return to IEEE 1451.3
