Invigorating the idea of computers based on fluids instead of silicon, researchers at the National Institute of Standards and Technology (NIST) have shown how computational logic operations could be performed in a liquid medium by simulating the trapping of ions (charged atoms) in graphene (a sheet of carbon atoms) floating in saline solution. The scheme might also be used in applications such as water filtration, energy storage or sensor technology.
The idea of using a liquid medium for computing has been around for decades, and various approaches have been proposed. Among its potential advantages, this approach would require very little material and its soft components could conform to custom shapes in, for example, the human body.

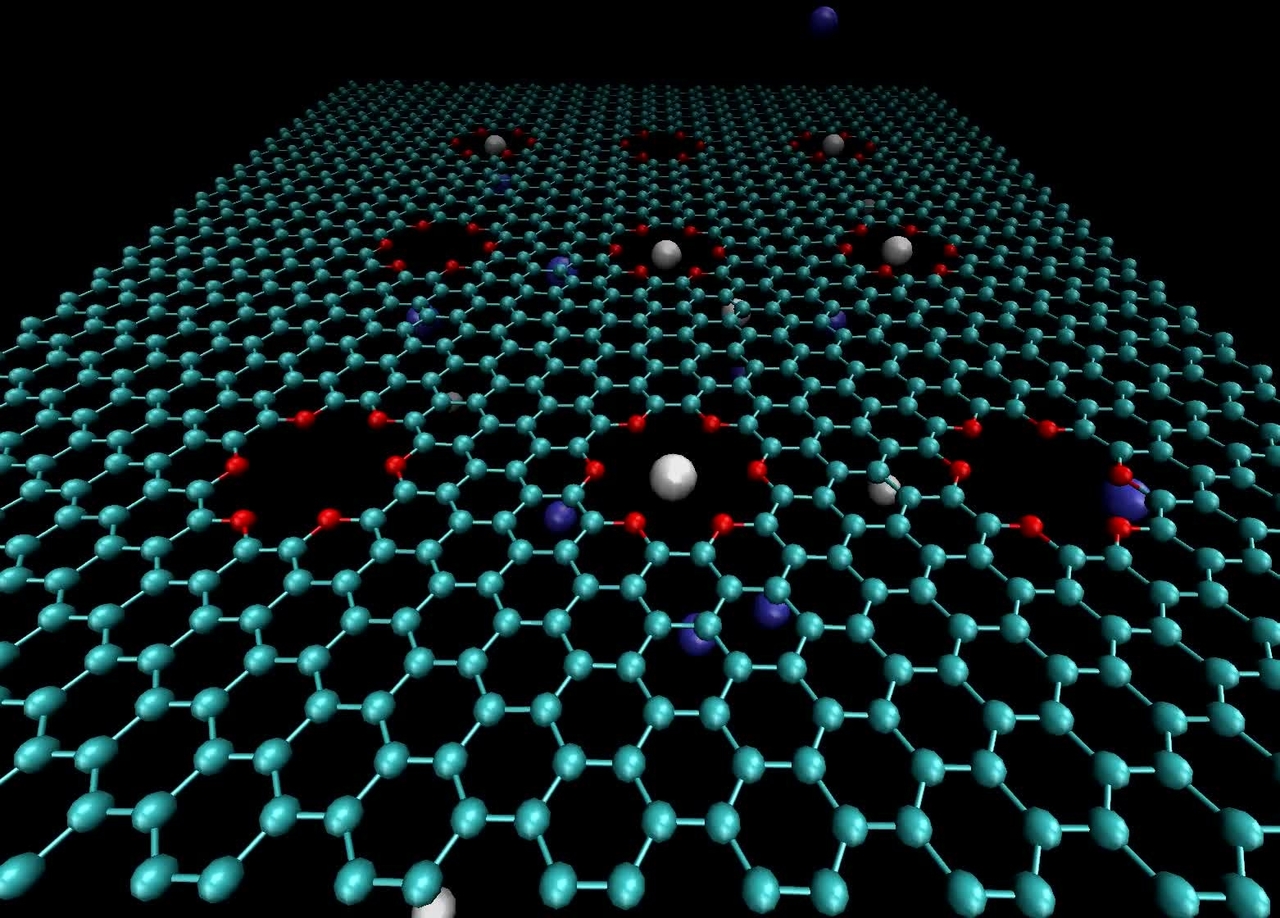

NIST simulation of ion trapping in a saline solution with a graphene membrane (turquoise) containing oxygen-lined pores (red) that trap potassium ions (grey) but not chlorine ions (blue). Ion trapping prevents penetration of additional ions through the membrane. Such a setup might be used for computing in a liquid medium. Credit: NIST
NIST’s ion-based transistor and logic operations are simpler in concept than earlier proposals. The new simulations show that a special film immersed in liquid can act like a solid silicon-based semiconductor. For example, the material can act like a transistor, the switch that carries out digital logic operations in a computer. The film can be switched on and off by tuning voltage levels like those induced by salt concentrations in biological systems. (See text box below.)
“Previous devices were much more elaborate and complex,” NIST theorist Alex Smolyanitsky said. “What this ion-trapping approach achieves is conceptual simplicity. In addition, the same exact device can act as both a transistor and a memory device—all you have to do is switch the input and output. This is a feature that comes directly from ion trapping.”
The NIST molecular dynamics simulations focused on a graphene sheet 5.5 by 6.4 nanometers (nm) in size and with one or more small holes lined with oxygen atoms. These pores resemble crown ethers—electrically neutral circular molecules known to trap metal ions. Graphene is a sheet of carbon atoms arranged in hexagons, similar in shape to chicken wire, that conducts electricity and might be used to build circuits. This hexagonal design would seem to lend itself to pores, and in fact, other researchers have recently created crown-like holes in graphene in the laboratory.
In the NIST simulations, the graphene was suspended in water containing potassium chloride, a salt that splits into potassium and sodium ions. The crown ether pores were designed to trap potassium ions, which have a positive charge. Simulations show that trapping a single potassium ion in each pore prevents any penetration of additional loose ions through the graphene, and that trapping and penetration activity can be tuned by applying different voltage levels across the membrane, creating logic operations with 0s and 1s (see text box below).
Ions trapped in the pores not only block additional ion penetration but also create an electrical barrier around the membrane. Just 1 nm away from the membrane, this electric field boosts the barrier, or energy needed for an ion to pass through, by 30 millivolts (mV) above that of the membrane itself.
Applying voltages of less than 150 mV across the membrane turns “off” any penetration. Essentially, at low voltages, the membrane is blocked by the trapped ions, while the process of loose ions knocking out the trapped ions is likely suppressed by the electrical barrier. Membrane penetration is switched on at voltages of 300 mV or more. As the voltage increases, the probability of losing trapped ions grows and knockout events become more common, encouraged by the weakening electrical barrier. In this way, the membrane acts like a semiconductor in transporting potassium ions.
To make actual devices, crown ether pores would need to be fabricated reliably in physical samples of graphene or other materials that are just a few atoms thick and conduct electricity. Other materials may offer attractive structures and functions. For example, transition metal dichalcogenides (a type of semiconductor) might be used because they are amenable to a range of pore structures and abilities to repel water.
The research is funded by the Materials Genome Initiative.
Paper: A. Smolyanitsky, E. Paulechka and K. Kroenlein. 2018. Aqueous ion trapping and transport in graphene-embedded 18-crown-6 ether pores. ACS Nano. Published 28 June 2018. DOI: 10.1021/acsnano.8b01692
NIST simulations showed that ion trapping depends on the voltage across the porous graphene membrane, suggesting the possibility of performing simple ion-based logic operations. At sufficiently low salt concentration, the membrane’s highly conductive (on) regime coincides with low trapped ion occupancy, and vice versa. Direct electrical measurement of the membrane’s voltage, which might be used in an electrical circuit, is what’s known as a “read” operation.
If a low voltage, denoted 0, is applied across the membrane with appropriate salt concentration, the membrane is nearly nonconductive (off) and its pores are fully occupied by the trapped ions. Therefore, the charge in the graphene circuit, measured at the membrane, is relatively high, denoted as 1. Conversely, when high voltage (more than 300 mV), denoted 1, is applied, the membrane is highly conductive (on), fewer ions are trapped, and thus a low (0) state of energy in the membrane itself is measured.
The input-output relationship can be viewed as a NOT logic gate or operation, in which input and output values are reversed. If 0 goes in, then 1 comes out, and vice versa. With two graphene sheets an OR (XOR) logic operation would be possible. In this case, the output value, or the difference between the two membrane states, is 1 only when either of the two sheets is highly conductive. Stated another way, the output is 1 if the inputs are different but 0 if the two inputs are identical.
Even a small variation in applied voltage results in a relatively large change in potential membrane charge or current, suggesting that sensitive switching may be possible. Thus, voltage-tunable ion trapping in crown pores might be used to store information, and simple, yet sensitive ionic transistors might be used to perform sophisticated logic operations in nanofluidic computing devices.
