Election Night Reporting (ENR) Use Case

READ-ONLY SITE MATERIALS: Historical voting TWiki site (2015-2020) ARCHIVED from

Security of Election Night Reporting image 01

The primary purpose of election-night reporting (ENR) is to provide election results to election results consumers (election stakeholders, voters, public, media, and others). Election results represent the total counted votes from each reporting context (precincts, county, etc.) exercised in a state. An ENR tool generally operates from the highest-level reporting context (e.g., state or county). Results may reach the ENR in many possible ways depending on the election processing (distributed, centralized), dominant voting type (absentee only vs. mixture), state laws (deadlines for accepting/processing absentee, provisional ballot types), reporting abilities they are designed to support (incremental, batch; before, during, after election/polls-closed). Typically, initial uploads of results (by EOs) are provided to the ENR and may be updated as additional results or corrected errors are processed. ENR tools may provide users with overall results process completion information indicating what results have been received, are complete, and so forth. Results are finalized and certified after official canvassing which reviews unofficial results after all are loaded and any corrections are made. ENR tools involve the coordination of a number of factors affecting their operation and implementation. They must be prepared to process and provide data accurately, securely, and without loss of service throughout the entire reporting process and under heavy upload or access periods. They must be able to receive, resolve, integrate and manage results data with respect to a number of different sources (systems: tabulator, EMS, VR; reporting-contexts: precinct, county), transport methods (physical; logical/remote: modem, wired, wireless), data formats (CDF, XML, CSV, …), codings (contest, county), and destinations (published web, data subscribers: media, stake-holders). All throughout the security, integrity, and reliability of the data and process should be maintained. ENR implementations may exist standalone or may be embedded inside other systems (such as an EMS). They may also access other systems to obtain results data or context data (such as voter turnout, voter-specific information from a VR system). They may be implemented using a variety of architectures and approaches ranging from standalone, on-site systems to distributed, cloud-based solutions. In all cases, at minimum, they enable users to generate reports per reporting context. Beyond that, many other data interaction, filtering, interpretation, and reporting options are available. Data formats may be used both on the input and output sides, enabling both results input/uploading as well as results access/download via specific formats.

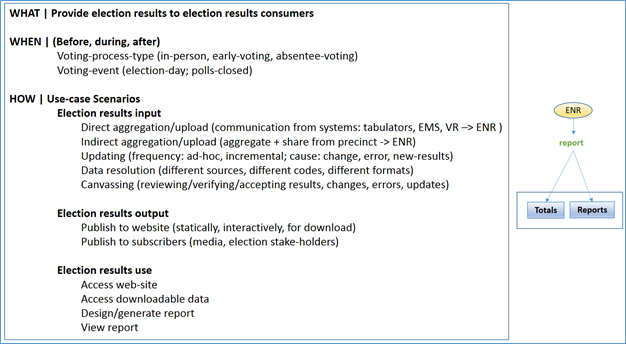

Voting Image: ENR Use Case Image 01

Use Case Scenarios

WHAT | Provide election results to election results consumers

WHEN | (Before, during, after)

  1. Voting-process-type (in-person, early-voting, absentee-voting)

  2. Voting-event (election-day; polls-closed)

HOW | Scenarios

  1. Election results input

    1. Direct aggregation/upload (communication from systems: tabulators, EMS, VR -> ENR)

    2. Indirect aggregation/upload (aggregate + share from precinct --> ENR)

    3. Updating (frequency: ad-hoc, incremental; cause: change, error, new-results)

    4. Data resolution (different sources, different codes, different formats)

    5. Canvassing (reviewing/verifying/accepting results, changes, errors, updates)

  2. Election results output

    1. Publish to website (statically, interactively, for download)

    2. Publish to subscribers (media, election stake-holders)

  3. Election results use

    1. Access web-site

    2. Access downloadable data

    3. Design/generate report

    4. View report

Request for Feedback

For each use case scenario, please address these questions:

  1. Is the use case scenario in scope for the Next Generation VVSG for development of requirements that will undergo testing and certification? or
  2. Is the use case scenario in scope to develop as guidelines for election officials and voting system manufacturers? or
  3. Is the use case scenario not in scope for this work?
  4. If different parts of the use case scenario fall in 1., 2., and/or 3. Please identify as such.
  5. Is anything missing?
