For first responders, such as firefighters, police officers and emergency medical technicians, a successful outcome to a mission—and perhaps the difference between life and death for them and those they are helping—depends on their communications system. Recognizing this critical need, first responders and emergency management officials have been calling for high-speed, LTE (Long-Term Evolution) cellular devices with three public safety “mission-critical voice” capabilities: “push-to-talk” for an immediate connection, “one-to-many” allowing an individual to broadcast to a large group, and “direct mode” that maintains a walkie-talkie connection when a wireless network is down, blocked or otherwise unavailable. To make this technology work effectively and ensure consistent product quality, the experts have already started developing standards.

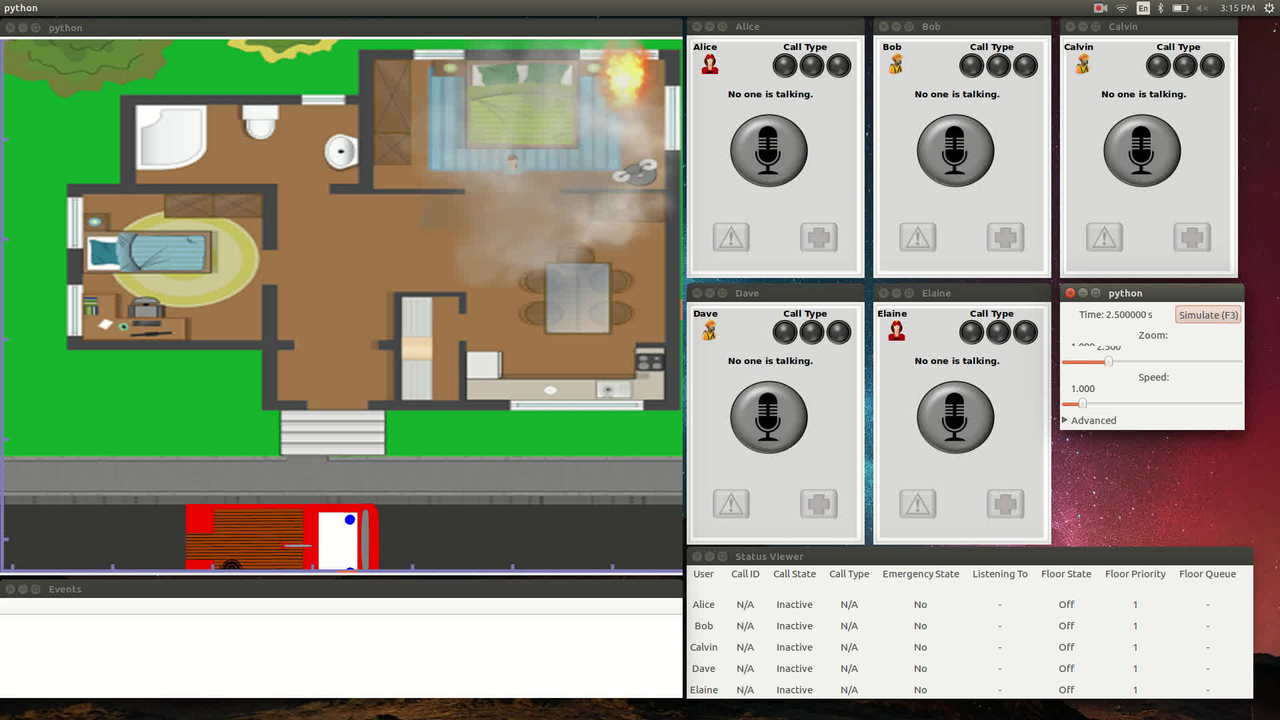

As shown in this video, simple animation visualizes the complex data generated by NIST’s new tool for simulating future LTE cellular devices for use in emergency situations. As the scenario unfolds, the devices and their network are tested by changing numbers of first responders, movement in and out of the of fire scene, priority communication needs, peril situations and other factors that may affect performance. Credit: NIST
There’s just one catch: a device that employs all of these desired features doesn’t yet exist. And without a working device to scientifically evaluate in different emergency situations, it hasn’t been easy to design the standards that will optimize its performance.
So, to keep mission-critical voice communications development and standardization moving forward, the National Institute of Standards and Technology (NIST) is putting a new computer modeling tool on the job. The NIST tool uses ns-3, an open-source network simulation software, giving researchers the ability to virtually recreate any emergency scenario and draw upon a variety of environmental, structural, technological and human behavioral factors that could impact the performance of future LTE cellular devices.
Models produced by the NIST tool address performance issues such as voice traffic: who’s talking, blocked or waiting in line to speak at any moment, and how well is the overall conversation flowing; location: how do first responder movements—such as into and out of buildings, behind trees or next to metal walls—affect transmissions; networking: how easily can additional first responder units join the communications network established by the team initially on the scene; and the use of protocol emergency buttons: how effective are these functions that give first responders the ability to break through ongoing communications to request immediate assistance for victims or themselves.
A graphical user interface (GUI) can be used with the NIST tool so that results from the models can be viewed as animations. Videos with demonstration scenarios showing first responders and the LTE communications protocol in operation during different types of emergencies are available from NIST.
“We hope that the new modeling tool will be widely used by researchers who want to experiment with different ways to optimize the three key mission-critical voice capabilities, by manufacturers who want to ‘field test’ device designs without having to build multiple versions, and by emergency management officials who want to educate first responders under their command about the advantages of LTE communications in hazardous situations,” said Richard Rouil, a computer engineer in NIST’s Communications Technology Laboratory (CTL) who helped create the tool. “Most importantly, the tool makes it possible to develop, test and refine standards for the next generation of emergency response communications devices concurrently with, rather than after their development.”
According to Rouil, a collaborative effort with the University of Washington will work toward integrating the NIST module directly into the ns-3 software to enable expansion of the tool’s modeling capabilities. Funding for this project comes from a NIST grant awarded in June 2017 to the University of Washington as part of the Public Safety Innovation Accelerator Program, a technology advancement effort for public safety communications that also is funding the development of the LTE modeling tool. The Innovation Accelerator Program, managed by NIST CTL’s Public Safety Communications Research (PSCR) Division, provides research, development, testing and evaluation of broadband communications technologies to foster nationwide interoperability among first responders.
The NIST LTE Device-to-Device Communication Model for ns-3 is available for downloading as is the free ns-3 software. A recent NIST paper provides information on the implementation and validation of the model.
