Artifacts, Begone! NIST Improves Its Flagship Device for Measuring Mass

For the first time, the NIST-4 Kibble balance directly incorporates a quantum standard for electrical resistance.

NIST-4 Kibble balance

The NIST-4 Kibble balance is an electromechanical machine that measures the mass of objects roughly 1 kg. Here, you can see the top of the balance, which includes a wheel that rotates back and forth as the two sides of the balance move. Just visible on the left side of the image are a set of thin electrical wires that connect the electromagnetic coil (not pictured) to other key parts of the balance. Incidentally, the reason the thin wires are coiled like springs instead of being pulled straight is so that as the wheel moves back and forth, the wires stretch without touching each other.

Credit: Jennifer Lauren Lee/NIST

In a brightly lit subterranean lab at the National Institute of Standards and Technology (NIST) sits a room-sized electromechanical machine called the NIST-4 Kibble balance.

The instrument can already measure the mass of objects of roughly 1 kilogram, about as heavy as a quart of milk, as accurately as any device in the world. But now, NIST researchers have further improved their Kibble balance’s performance by adding to it a custom-built device that provides an exact definition of electrical resistance. The device is called the quantum Hall array resistance standard (QHARS), and it consists of a set of several smaller devices that use a quirk of quantum physics to generate extremely precise amounts of electrical resistance. The researchers describe their work in a Nature Communications paper.

The improvement should help scientists use their balances to measure masses smaller than 1 kilogram with high accuracy, something no other Kibble balance has done before.

NIST-4 measurements were used to help scientists redefine the kilogram, the fundamental unit of mass in the International System of Units (SI), in 2019. Everything that must be weighed, from market produce to the ingredients in your cold medicine, relies on this new definition of mass.

The new custom-built QHARS device is an example of a measurement standard — an object or instrument that has some predefined relationship to a physical quantity such as length or time or brightness. The standard in this case is an electrical device that uses quantum principles to generate a precise amount of electrical resistance. This generated resistance then serves as a reference during the Kibble balance’s operation.

Measuring Mass with a Quantum Standard
Measuring Mass with a Quantum Standard

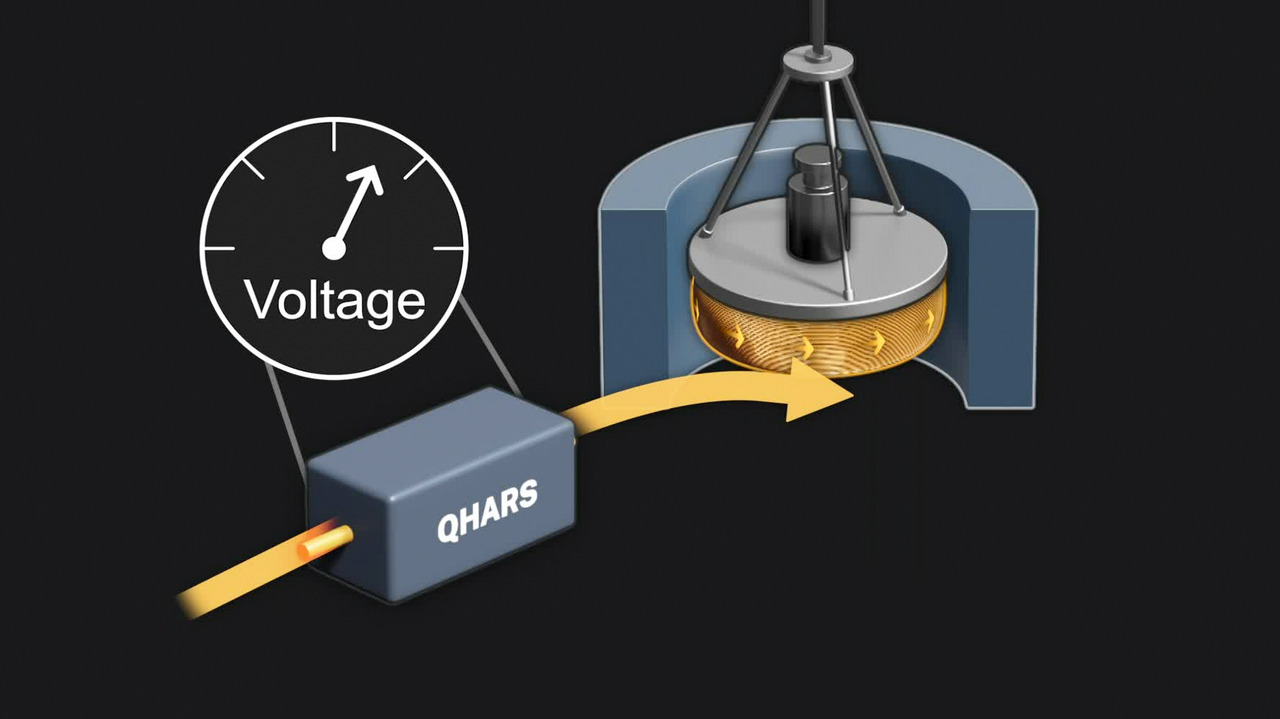

For the first time, scientists have integrated a quantum resistance standard directly into mass measurements made with the one-of-a-kind NIST-4 Kibble balance. Using the quantum standard in this way increases the accuracy of the measurements. This animation shows how the new quantum resistance standard, called QHARS, works. The QHARS device uses a sheet of graphene (a single layer of carbon atoms) attached to superconducting electrical contacts. When cooled to low temperature and placed in a strong magnetic field, electrons in the graphene begin moving in closed loops, a phenomenon known as the quantum Hall effect. This behavior results in the graphene having a specific resistance, providing an absolute reference for measuring current in the NIST-4 Kibble balance. Credit: Sean Kelley/NIST

Before this work, the NIST-4 Kibble balance relied on a different standard instrument that also provided an exact definition of electrical resistance. But that device could not be directly incorporated into the balance for technical reasons.

To get around this problem, researchers had to take another object — called an artifact — and use the standard to calibrate or assess that artifact. They then used the artifact directly with the NIST-4 Kibble balance.

The new setup eliminates the need for a resistance artifact and improves the accuracy of the balance.

“Doing the extra step of calibrating a resistor reduced the accuracy of the mass measurements,” said NIST’s Darine Haddad. “Because we’re now using a quantum standard directly instead of an artifact, we’re eliminating the calibration step entirely. That cuts down the resistance uncertainty,” meaning there is a significant improvement in resistance accuracy.

‘Current’ Dilemma

The NIST-4 Kibble balance machine works by comparing mechanical force to electromagnetic force. In a nutshell, a mass sits on the balance, and gravity pulls it down. Researchers then pump current through a coil of wire sitting in a magnetic field, and that electrical current pushes the mass upward, effectively levitating it in midair. Scientists measure the amount of current that’s needed to float the object, balancing it exactly. If you can measure the current, you can work out the object’s mass.

But for this to work, measurement scientists need to know exactly how much current flows through the coil with a high degree of accuracy. They do this by measuring two other easier-to-measure values: the voltage and the resistance.

A quantum voltage standard is already integrated into the device. But the quantum resistance standard could not be used directly because the traditional device, made of gallium arsenide (GaAs), cannot function correctly with the relatively large amounts of current needed to levitate a macro-scale object like a 50- or 100- or even 1,000-gram mass. So instead, the GaAs device was used separately to measure the resistance of a freshly calibrated object that is then inserted into NIST-4 and used in the actual measurement.

QHARS
A close-up of the array of units that make up a QHARS device. The electronic chip that sits on the gold platform is about 7 mm long and 3.5 mm wide, roughly the size of a pencil eraser.
Credit: Alireza R. Panna/NIST

New QHARS to the Rescue

To address this problem, NIST has been designing and testing a new type of quantum resistance device: the QHARS. Instead of GaAs, this instrument is made of graphene — the single atomic layer-thick sheet of carbon atoms that has been a hot topic for many years for its promise in a variety of uses, including faster and flexible electronics.

The new graphene QHARS developed at NIST passes current through an array of 13 smaller elements in parallel. These elements work based on something called the quantum Hall effect, in which the electrical resistance is “quantized” — that is, it can have only a few possible, very specific and predictable, values. That makes the device a resistance standard that is accurate on a quantum level. (See animation.)

Using 13 quantum Hall resistor units together further increases the amount of current the new QHARS can handle.

“We need about 700 microamperes [millionths of an ampere] flowing in the coil to levitate a 100-gram mass,” Haddad said. “In the gallium arsenide resistance standard, you can’t do that.”

To prove this new quantum resistance standard could work in NIST-4, Haddad and her team used multiple QHARS devices, one at a time, and compared their results indirectly to the GaAs quantum resistance standard. The results for the 50-gram mass measurements all closely agreed with one another — “it’s as good as it gets,” Haddad said.

Future models of the new resistance standard might see further improvements. In order to work, both the traditional GaAs device and the graphene QHARS must be cooled to just a few degrees above absolute zero and be exposed to their own high magnetic fields. Someday, a QHARS-style device could be developed to work at room temperature and zero magnetic field, which would make the whole system much more compact.

Also, unlike the old resistance standard, a next-generation QHARS could be programmable, meaning the instrument would be more versatile: Scientists could use one device to generate different amounts of resistance depending on what they needed for a particular experiment.

“A quantum resistance standard that is programmable and that works at room temperature with a low magnetic field: This is what the physicists are trying to push for,” Haddad said.

-- Reported and written by Jennifer Lauren Lee


Paper: Frank C. Seifert, Alireza R. Panna, I-Fan Hu, Lorenz H. Keck, Leon S. Chao, Shamith U. Payagala, Dean G. Jarrett, Chieh-I Liu, Dipanjan Saha, Randolph E. Elmquist, Stephan Schlamminger, Albert F. Rigosi, David B. Newell and Darine Haddad. A macroscopic mass from quantum mechanics in an integrated approach. Nature Communications. Published Dec. 10, 2022. DOI: https: 10.1038/s42005-022-01088-7

Released January 18, 2023, Updated January 24, 2023
