Taking Measure

Just a Standard Blog

My Visual Crutch for Communicating Science

April 18, 2019

By

By:
Rob Dimeo

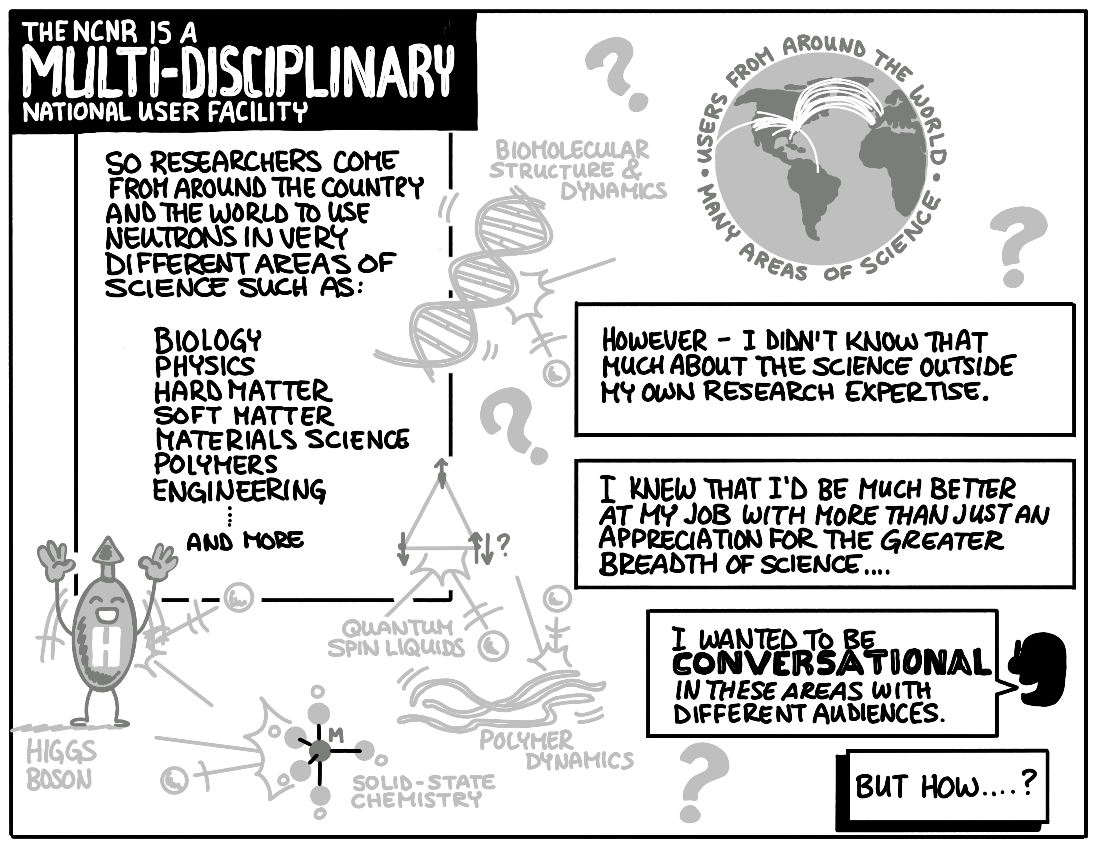

cartoon illustration featuring neutrons and question marks detailing the struggle to explain science to visitors that is outside Dimeo's area of expertise
Credit: R. Dimeo

cartoon illustration detailing Dimeo's discovery of sketchnoting
Credit: R. Dimeo

cartoon illustration about the process of learning to become a sketchnoter
Credit: R. Dimeo

cartoon illustration explaining difference between sketchnotes and infographics. Infographics are for general audience; sketchnotes are for individual
Credit: R. Dimeo

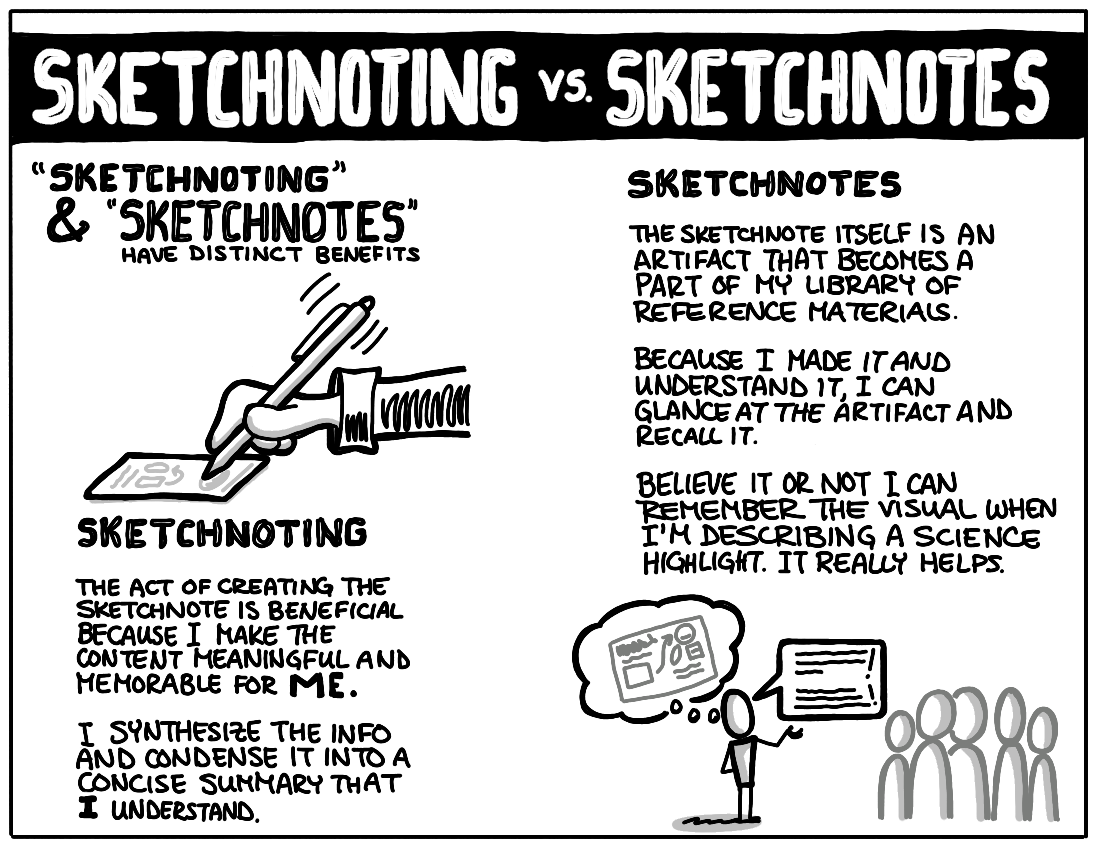

cartoon illustration detailing difference between sketchnoting and sketchnotes
Credit: R. Dimeo

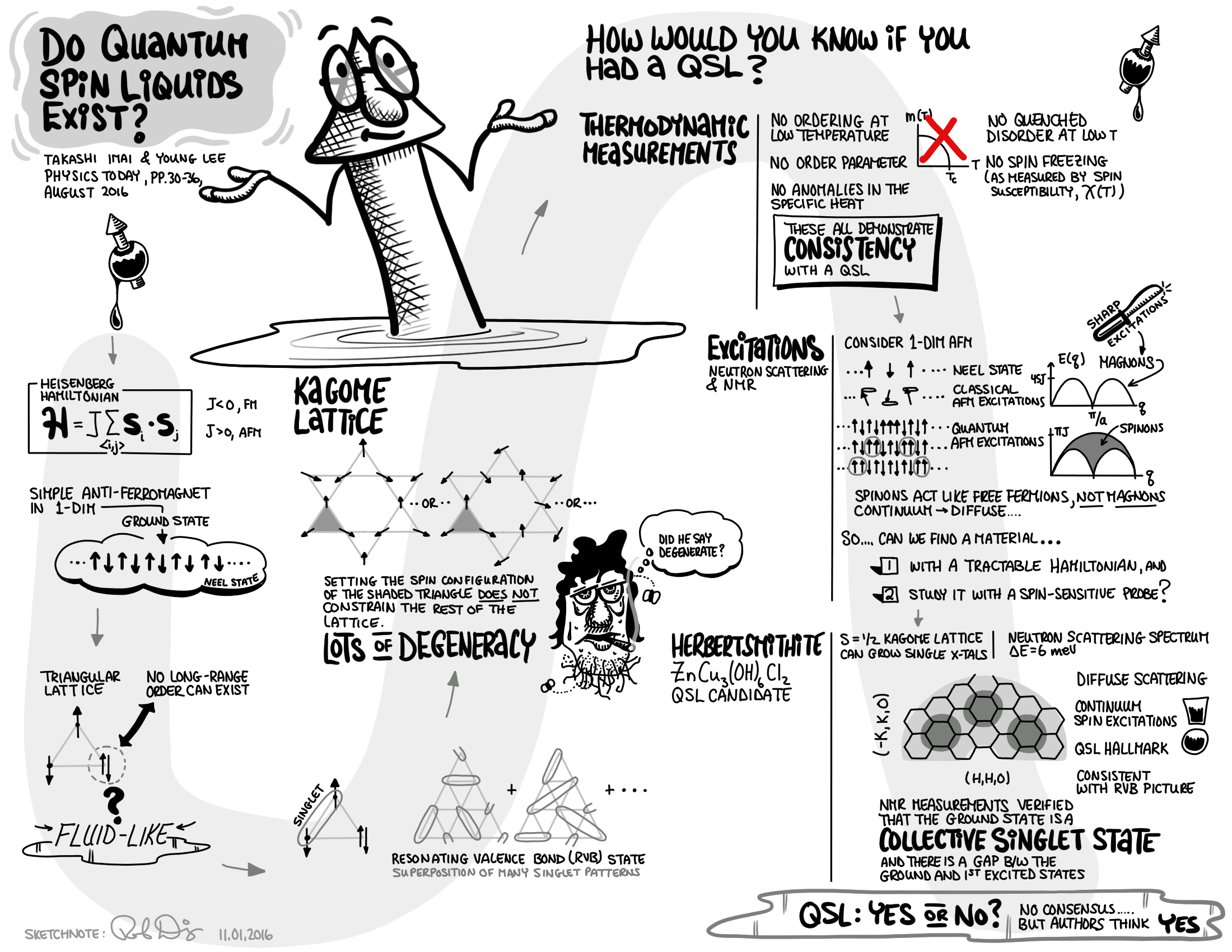

cartoon illustration about quantum spin liquids
Credit: R. Dimeo

cartoon illustration about quantum spin liquids
Credit: R. Dimeo

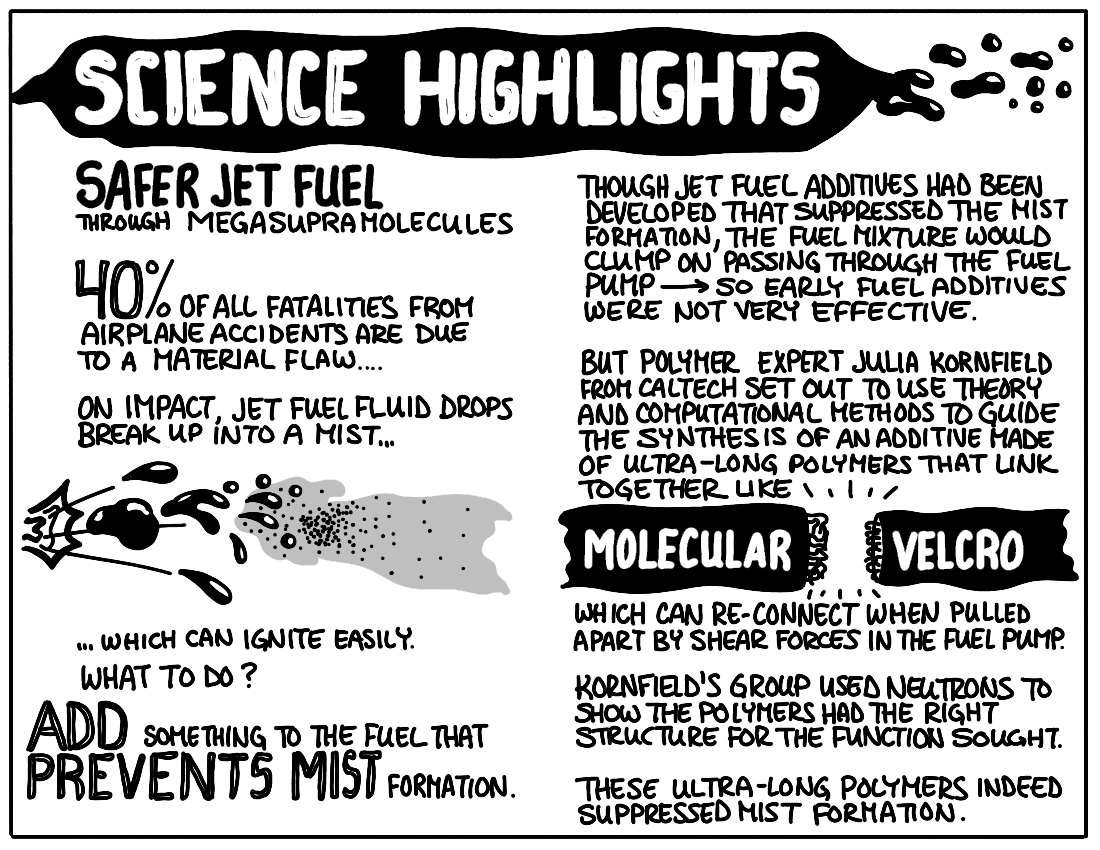

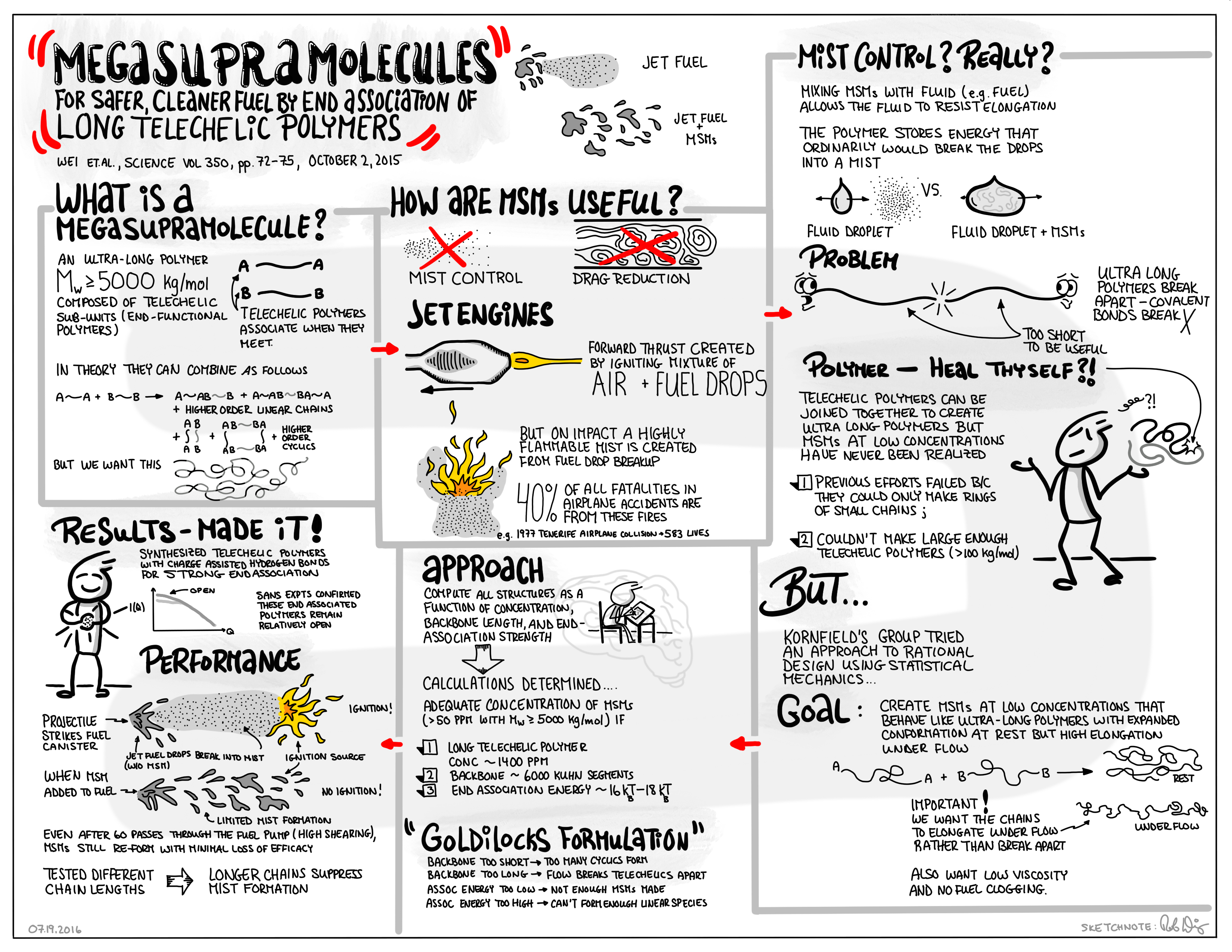

cartoon illustration about jet fuel additive that reduces misting and makes fuel less dangerous in the case of an accident
Credit: R. Dimeo

Cartoon illustration about jet fuel additive continued
Credit: R. Dimeo

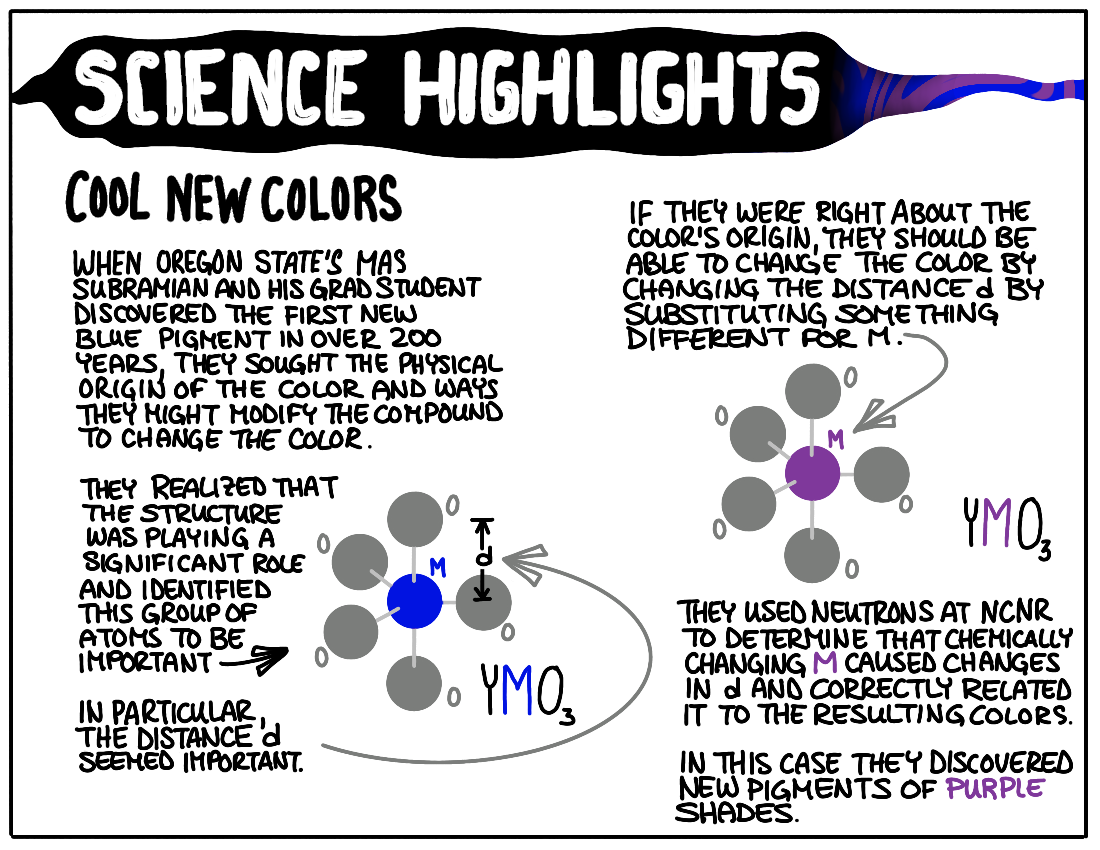

cartoon illustration of how neutrons can be used to determine how atomic structure influences color
Credit: R. Dimeo

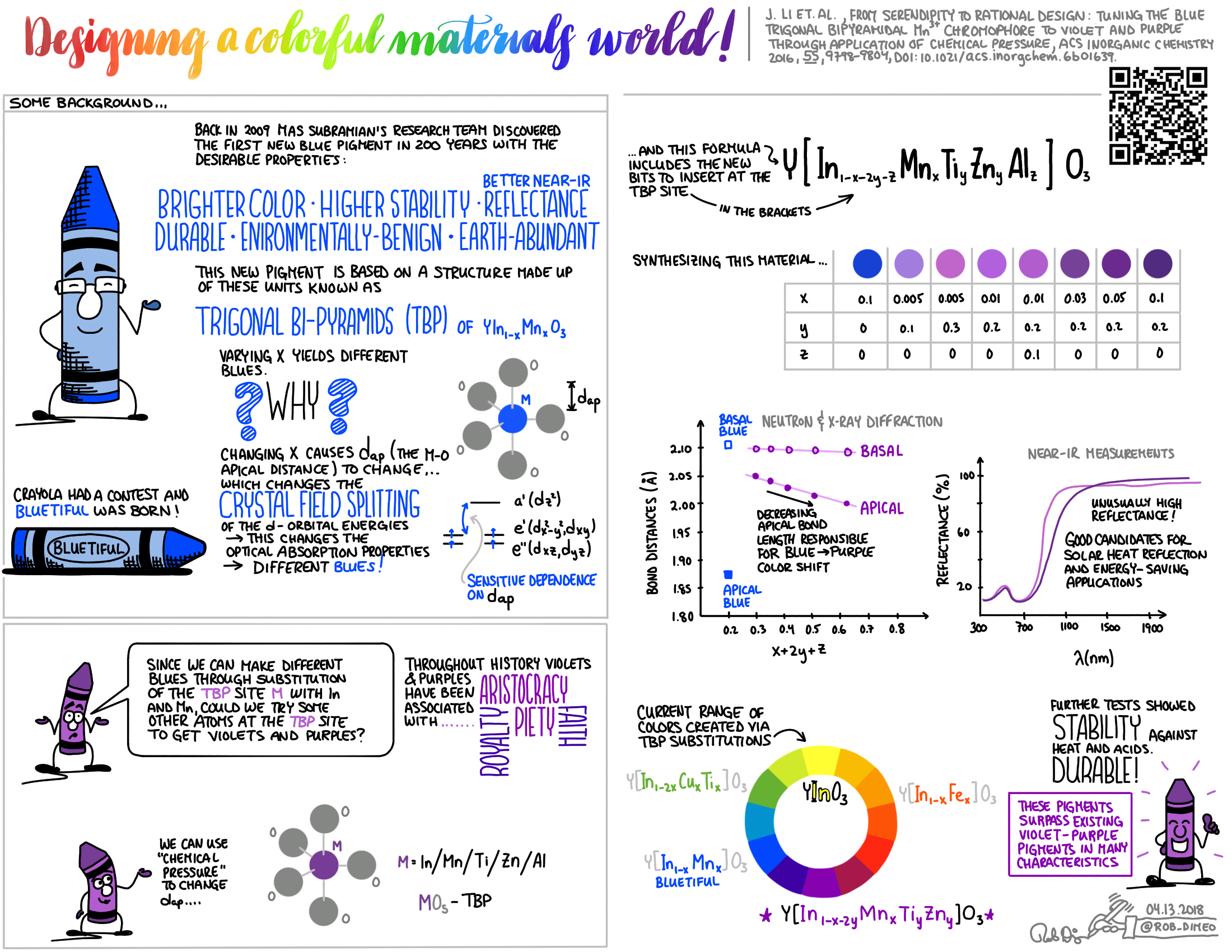

colored materials
Credit: dimeo

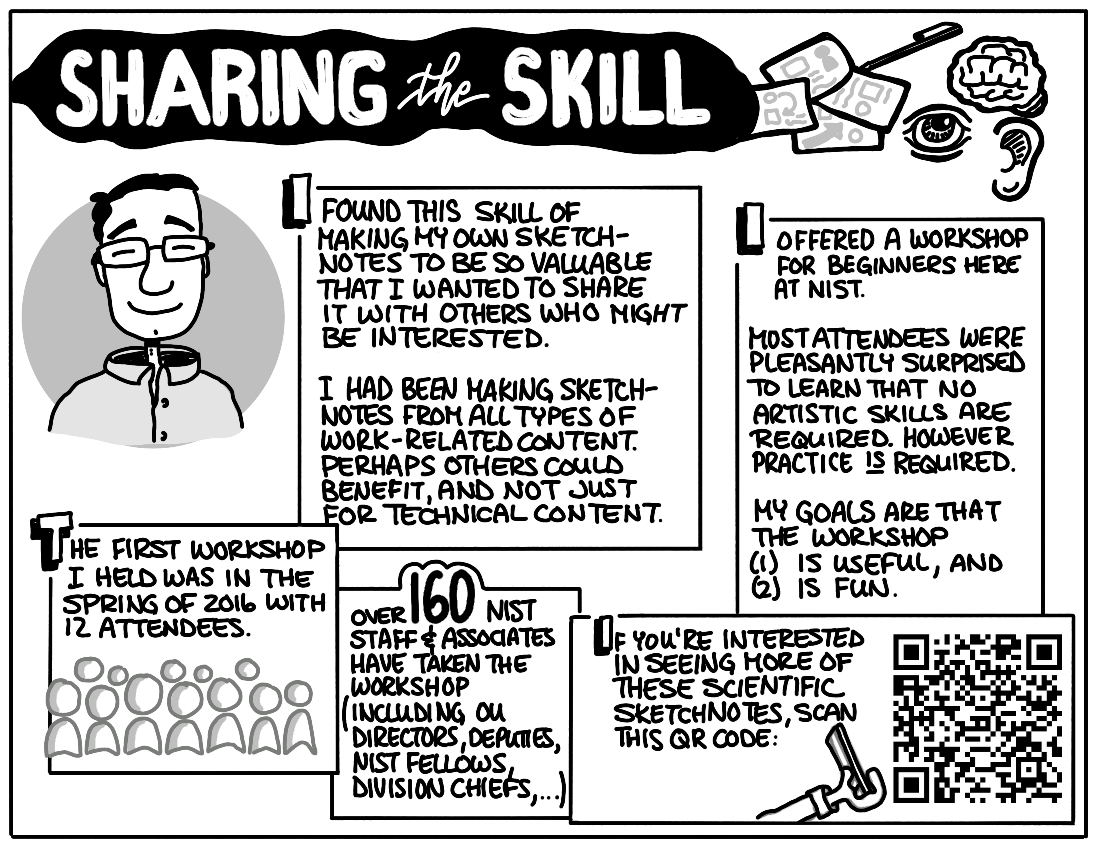

cartoon illustration about sharing the skill of sketchnoting
Credit: R. Dimeo
Bioscience, Chemistry, Materials, Nanotechnology, Neutron Research and Physics
